ZnSe Cylindrical Lenses
ZnSe cylindrical lenses shape or focus light in one axis for CO2 laser line generation, scanning, and infrared systems.
Quick Specifications
Product Description
Overview
ZnSe cylindrical lenses focus or expand light in one axis only. They are used to form line beams, correct astigmatism, or shape CO2 laser and infrared beams in one dimension.
Optical Function

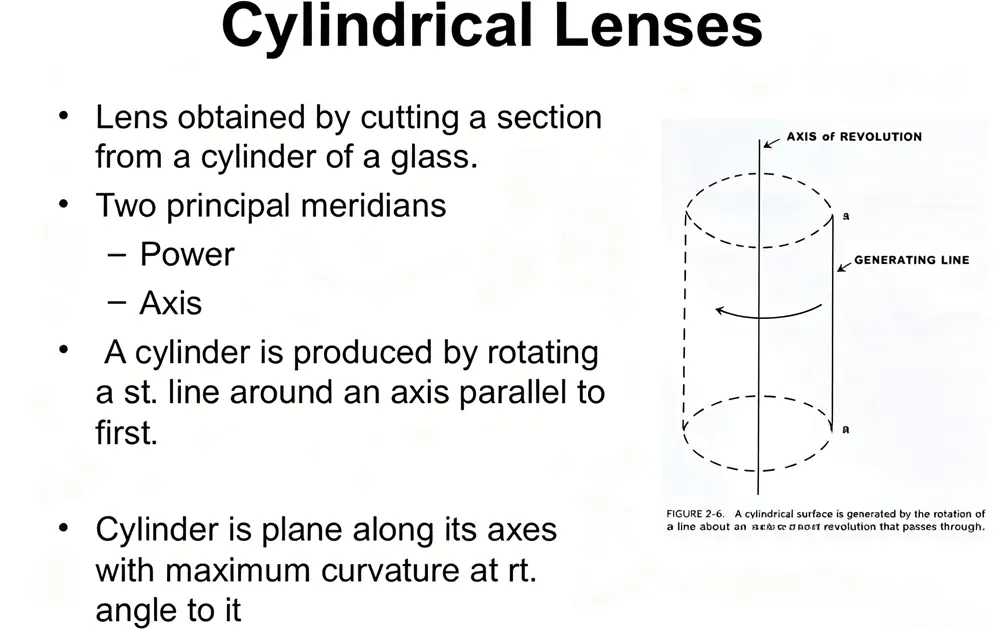

Unlike spherical lenses, cylindrical lenses act on a single axis. This makes them useful for line generation, one-axis magnification, scanner optics, and beam shaping layouts that require directional control.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | ZnSe |
| Size | Up to 30 mm typical; custom dimensions available |
| Focal Length | Custom; 300 mm typical |
| Clear Aperture | >90% |
| Surface Flatness | λ/4 @ 632.8 nm |
| Surface Quality | 40-20, 20-10 S-D |
| Centration | ±1 arc min |
| Coating | Uncoated standard; AR coating available on request |
Engineering Notes
Before release, confirm axis orientation, focal length, line length target, clear aperture, and coating needs. These details usually determine whether a cylindrical lens will match the scanner or beam-shaping layout.
Custom Manufacturing
Share your drawing, axis orientation, coating target, and dimensional tolerance through the contact form.
