ZnSe Beam Combiners

Overview

ZnSe beam combiners are wavelength-selective optics used to place a long-wave CO2 laser beam and a visible alignment beam on one optical path. They are commonly specified for 45 degree use in laser alignment, beam delivery, and optical setup verification.

In practical engineering, the most important decision is not only the substrate. The coating design must be matched to the infrared wavelength, visible guide beam wavelength, angle of incidence, and polarization target. For related ZnSe material guidance, see our ZnSe material page.

Why This Product Matters

A beam combiner has to transmit one beam efficiently while reflecting another with controlled loss. That means coating performance, angle control, and clear aperture matter more than a generic part label. If the visible guide beam changes or the optic is used away from the intended incidence angle, performance can shift quickly.

Quick Specifications

How It Works

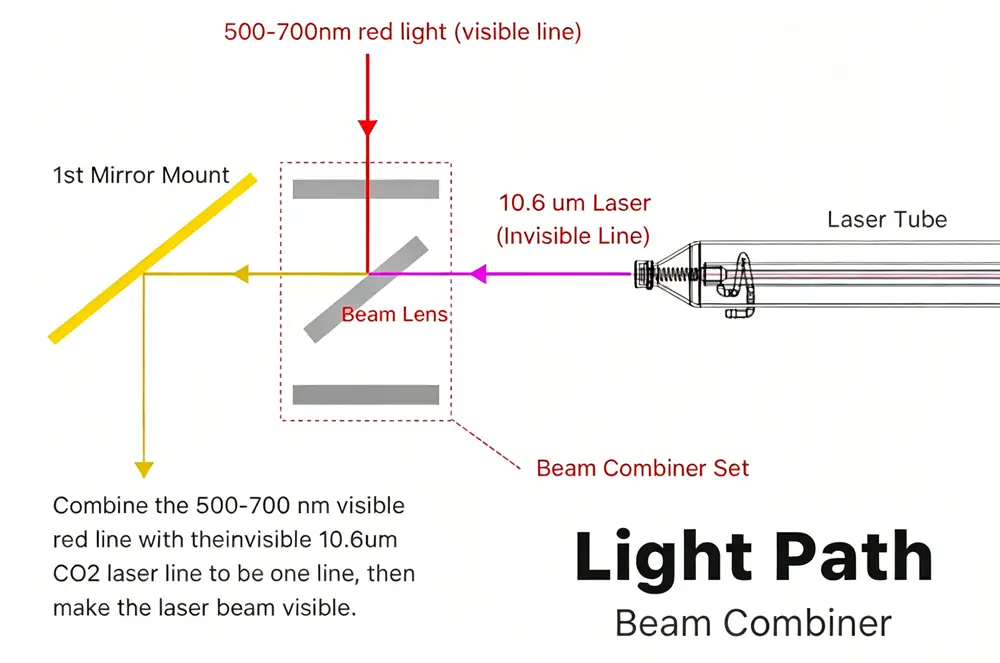

The optic acts as a wavelength-selective partial reflector. One beam is transmitted and the other is reflected, so the final performance depends on coating design, beam path, polarization, and the actual working angle. Before release, engineers should confirm the target T/R ratio and whether the combiner is optimized for the real guide beam wavelength.

Available Stock Sizes

Standard stock configurations shown in the source material cover diameters from 12.7 mm to 50.8 mm and thicknesses from 2.0 mm to 5.0 mm. If your system needs a different clear aperture, coating target, or mechanical envelope, the part should be reviewed against the drawing rather than selected by diameter alone.

Typical Applications

• CO2 laser alignment systems
• Visible guide beam integration
• Laser marking and cutting beam paths
• Infrared optical benches
• Beam delivery modules

Engineering Notes / Selection Guidance

For quotation, share the CO2 laser wavelength, visible guide wavelength, angle of incidence, polarization condition, required clear aperture, and target transmission / reflection behavior. If you are comparing related system optics, you can also review the beam combiner category or contact us through the inquiry page.
