ZnSe ATR Prisms
ZnSe ATR prisms support FTIR and attenuated total reflection sampling with CVD ZnSe material, custom size grades, and IR coating review.
Quick Specifications
Product Description
Overview
ZnSe ATR prisms are used for attenuated total reflection spectroscopy and infrared sampling. ZnSe is also used in CO2 laser optics because it transmits strongly near the 10.6 µm operating wavelength, but ATR applications require careful review of contact geometry, coating, sample chemistry, cleaning method, and surface condition.

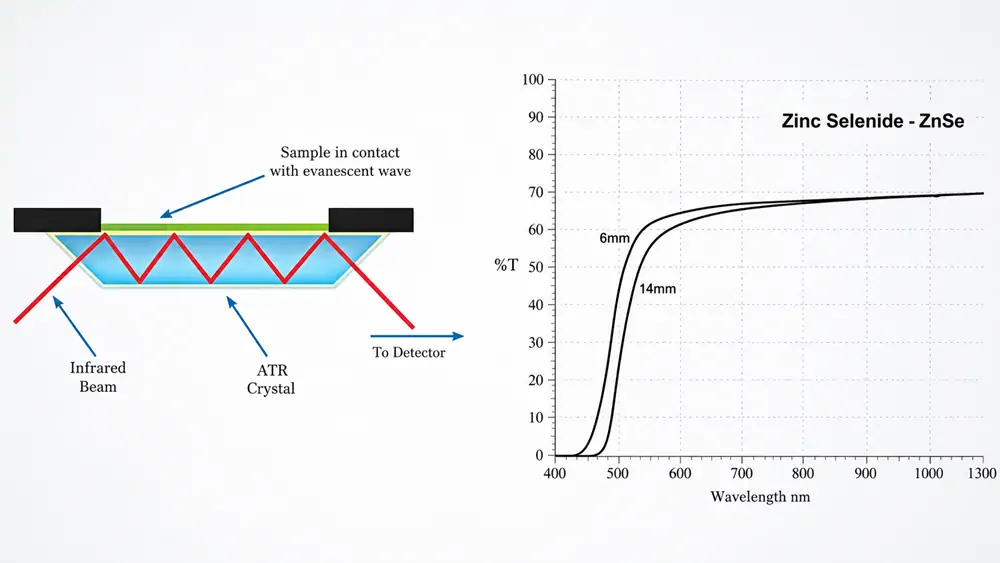

Why ZnSe ATR Geometry Matters
ZnSe provides broad infrared transmission and useful thermal shock resistance, but it is softer than multispectral grade ZnS and can scratch if handling and cleaning are not controlled. For high-power or high-sensitivity optical systems, engineers should confirm bulk absorption, internal material quality, polishing requirements, and coating durability before release.
Key Specification Summary
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
|---|---|---|---|
| Size Range | 1-600 mm | 2-600 mm | 2-600 mm |
| Dimensional Tolerance | ±0.1 mm | ±0.025 mm | ±0.01 mm |
| Thickness Tolerance | ±0.1 mm | ±0.025 mm | ±0.01 mm |
| Parallelism | ±3′ | ±15" | ±5" |
| Surface Quality | 60-40 | 40-20 | 20-10 |
| Surface Accuracy | 1.0λ | λ/10 | λ/20 |
| Coating | AR/AR 7-12 µm / 10.6 µm / 2-13 µm | Confirm by drawing | Confirm by drawing |
| Bevelling | 0.1-0.5 mm×45° | Confirm by drawing | Confirm by drawing |
| Substrate | CVD ZnSe | Confirm by requirement | Confirm by requirement |
Application Guidance
- FTIR and ATR spectroscopy
- Chemical and material analysis
- Infrared sensing and laboratory optical benches
- CO2 laser wavelength component review where ZnSe is suitable
Engineering Notes and Inquiry
For custom ATR prism review, send prism angle, contact face size, sample type, wavelength range, coating requirement, cleaning method, and drawing tolerances. Use the contact form to request engineering review, or compare related infrared optical materials.
