High-Efficiency 10.6um ZnSe Optics
High-Efficiency ZnSe AR Coating at 10.6um for CO2 Laser Optics
Optimize CO2 lasers with iroptical's 10.6um ZnSe AR coating. Features T > 99.4%, MIL-spec durability, and in-stock sizes. Contact sales@iroptical.com.
Product Overview
High-Efficiency ZnSe AR Coating at 10.6um for CO2 Laser Optics
Optimizing throughput and managing thermal runaway are critical challenges in high-power CO2 laser systems and thermal imaging applications. The iroptical high-efficiency anti-reflective (AR) coating on Zinc Selenide (ZnSe) substrate is engineered specifically for the 10.6um wavelength, delivering exceptional transmission while minimizing parasitic reflections. By choosing our precision optical coatings, R&D engineers can significantly enhance system efficiency, lower thermal distortion, and extend the lifespan of critical optical assemblies.
Technical Specifications
| Optical & Mechanical Parameter | Specification Value |
|---|---|
| Optimized Wavelength | 10.6 um |
| Total Transmission (T) | Greater than 99.4% @ 10.6 um |

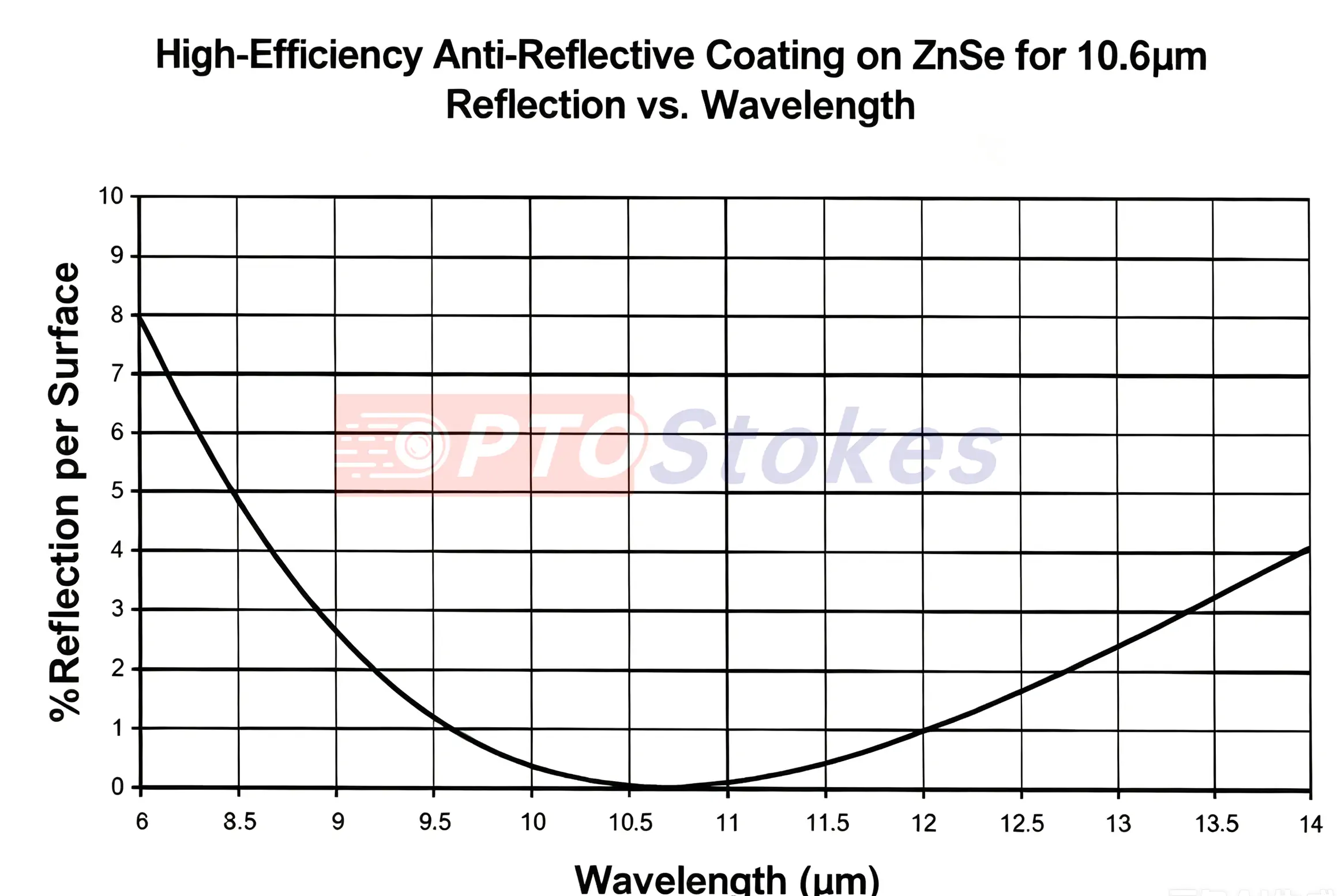

| Reflection per Surface (R) | Less than or equal to 0.2% |
| Absorption per Surface (A) | Less than or equal to 0.1% |
| Dimensions (Diameter x Thickness) | 50 mm x 1.0 mm |
| Substrate Material | Zinc Selenide (ZnSe) |
Environmental and Durability Performance
Designed to withstand harsh operational environments, this anti-reflective coating complies with rigorous military durability standards, ensuring long-term mechanical and optical stability:
| Adhesion: Certified compliant with MIL-C-48497 and MIL-C-675C tape testing. | Humidity Resistance: Meets MIL-C-675C and MIL-C-48497 standards for high-humidity environments. | Abrasion Resistance: Rated for moderate abrasion compliance per MIL-C-48497 and severe abrasion per MIL-C-675C. |
Target Applications
This premium coating is ideally integrated into high-precision industrial and defense systems, including:
High-power CO2 laser cutting, marking, and welding machinery.
Thermal imaging systems and FLIR sensors utilizing infrared windows.
Beam delivery systems and optical assemblies requiring custom CVD ZnSe lenses.
Customization, Lead Times, and Technical Support
At iroptical, we understand that standard components do not always fit bespoke engineering blueprints. We offer an extensive in-stock selection of standard shapes for rapid prototyping, alongside high-level customization support for modified dimensions, focal lengths, and specialized substrate geometries. Our world-class quality control guarantees reliable lead times and consistent batch-to-batch precision, eliminating the supply-chain bottlenecks common in custom optics procurement.
Contact Our Engineering Team
Are long lead times or coating degradation delaying your project timelines? Connect with our technical sales specialists to review your specific environmental requirements, obtain a custom quote, or request formal technical datasheets. Contact us directly at sales@iroptical.com or submit your inquiry online for a swift, comprehensive engineering assessment.
Technical Parameters
Detailed specifications are not available for this product yet. Please contact the team for application guidance.
