High-efficiency ZnSe Beam Combiners
10.6um CO2 Laser Beam Combiner with High Transmission ZnSe Beamsplitter
Premium 10.6um ZnSe beam combiners for CO2 lasers. High transmission at 10.6um, reliable reflection for 650nm alignment. Order in-stock or custom from iroptical.
Product Overview
10.6um CO2 Laser Beam Combiner with High Transmission ZnSe Beamsplitter

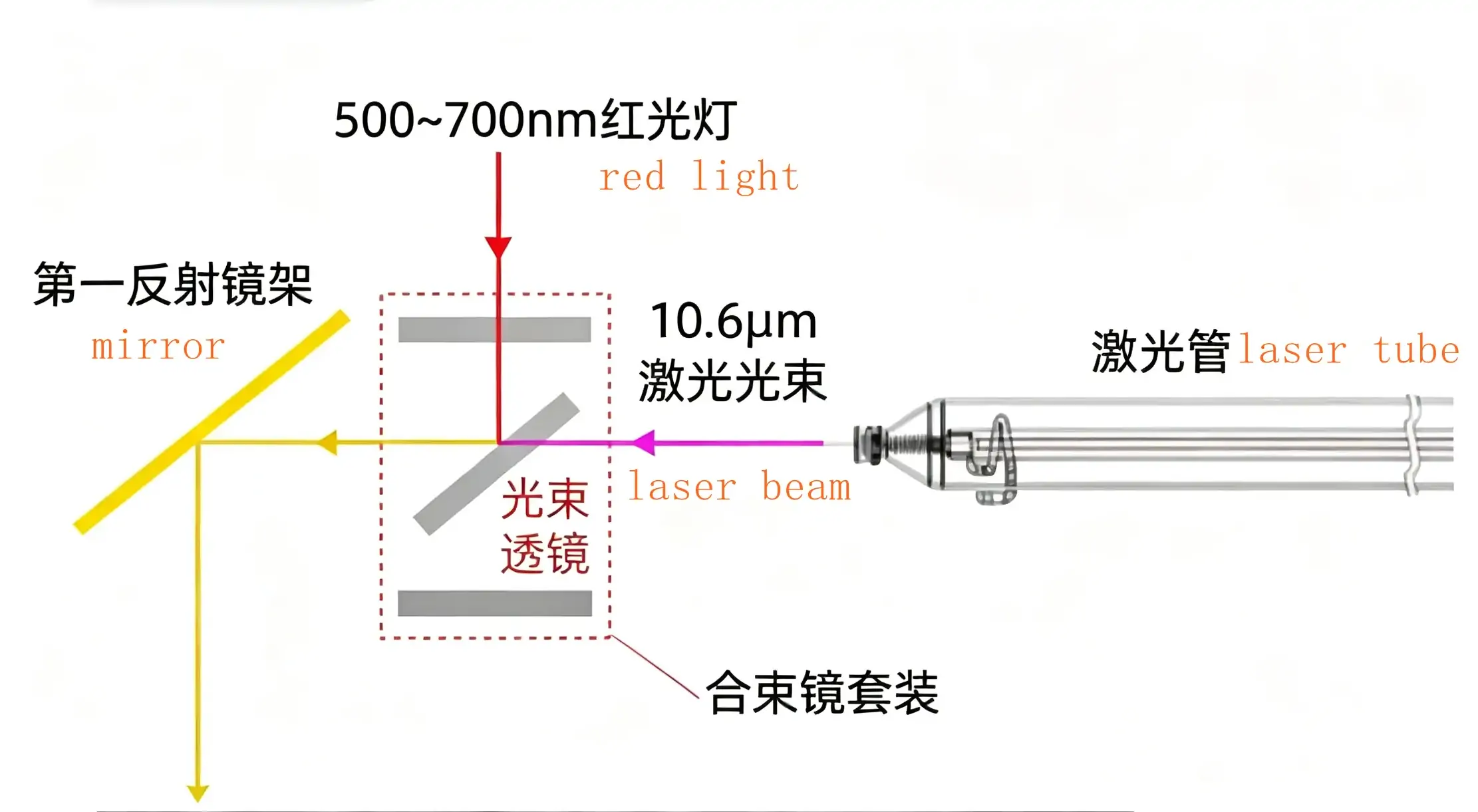

In high-power industrial laser processing and thermal imaging systems, achieving precise optical alignment is critical. The iroptical 10.6um ZnSe beam combiner is engineered specifically for CO2 laser systems, allowing a visible alignment laser (such as a 632.8nm or 650nm red laser) to be coaxially combined with the invisible infrared beam. This dichroic beamsplitter ensures optimal beam control and system accuracy for demanding applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Wavelength | 10.6 um |
| Diameter Tolerance | +0 / -0.10 mm |
| Thickness Tolerance | +/- 0.10 mm |
| Angle Tolerance | < +/- 2% |
| Clear Aperture | > 90% |
| Surface Quality (S/D) | 40-20 |
| Surface Irregularity | lambda / 2 per 1 inch |
| Parallelism | < 1 arc minute |
| Coating (Transmission) | T > 99% at 10.6um and 1064nm, AOI = 45 degree |
| Coating (Reflection) | R > 85% at 650nm and 632.8nm, AOI = 45 degree |
Industrial Applications
Our ZnSe beam combiners are widely integrated into advanced optical setups. Typical applications include:
Laser Material Processing: Enables precise red-dot targeting for CO2 laser cutting, engraving, and marking systems.
Optical Alignment & Beam Control: Serves as a reliable beamsplitter to merge multi-wavelength light paths with minimal wavefront distortion.
Infrared Imaging and Metrology: Optimizes infrared laser transmission while maintaining a clear visible reference path for system diagnostics.
Customization and Reliable Supply Chain
At iroptical, we understand that standard components do not always fit bespoke optical layouts. We offer comprehensive customization options for our infrared optics, including custom diameters, focal lengths, sub-wavelength tolerances, and specialized anti-reflective (AR) or thin-film coatings. Leveraging our world-class manufacturing precision, we guarantee consistent quality and reliable performance across all custom and catalog orders.
Overcome Lead Time Bottlenecks: Contact Us Today
R&D engineers and purchasing managers often face challenges with long lead times and unstable coating durability in high-power laser systems. This results in costly project delays and system downtime. To mitigate these risks, iroptical maintains an extensive in-stock selection of standard CO2 laser optics to support immediate integration and prototyping. For high-volume production or custom specifications with predictable lead times and guaranteed world-class quality, please contact our technical sales team at sales@iroptical.com or submit an online inquiry. Our engineering team is ready to provide comprehensive technical support for your next-generation system design.
Technical Parameters
Detailed specifications are not available for this product yet. Please contact the team for application guidance.
