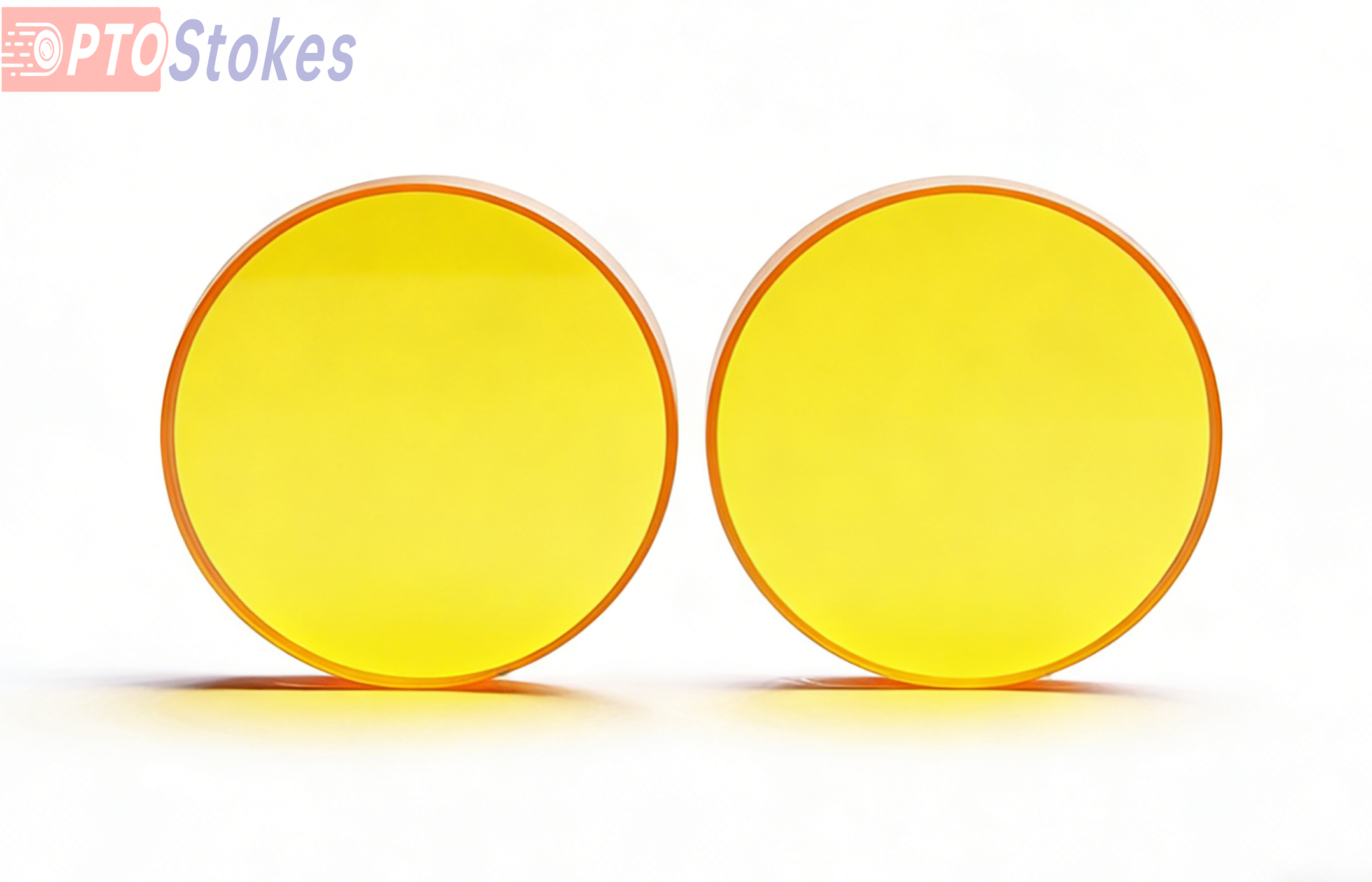

How Do ZnSe Beamsplitters Work in the Infrared Waveband and What Are Their Key Applications?
In high-precision optical systems such as mid-infrared (Mid-IR) spectroscopy, environmental gas monitoring, high-power laser processing, and remote sensing, Zinc Selenide (ZnSe) beamsplitters serve as critical components to maintain optical path stability, data accuracy, and process controllability. When selecting and sourcing these components in bulk, optical engineers and procurement managers prioritize splitting uniformity, waveband compatibility, and long-term environmental stability. Partnering with a professional infrared beamsplitter manufacturer ensures consistent quality and reliable performance under demanding industrial and research conditions.
1. The Core Working Principle of ZnSe Beamsplitters
Zinc Selenide is a preferred substrate material for mid-infrared applications due to its high transmittance across the 0.5–22 µm range, exceptionally low absorption loss, and excellent optical homogeneity in the 3–5 µm and 8–12 µm spectral bands. Standard Zinc Selenide splitters achieve precise control over beam splitting by utilizing thin-film interference coatings deposited on high-purity, chemically vapor-deposited (CVD) substrates.
When an incident infrared beam strikes the coated surface at a designated angle of incidence (typically 45°), the multi-layer dielectric coating splits the beam based on wave interference effects. A precise portion of the light is reflected into a reference optical path, while the remaining portion is transmitted toward the target sample or workpiece. By measuring the intensity differential between the reflected reference beam and the transmitted beam, analytical instruments can determine the precise infrared absorption characteristics of a sample with minimal stray light interference or splitting errors.
2. Wavelength-Selective Splitting in Gas Sensing and Remote Sensing
ZnSe beamsplitters are frequently integrated alongside mid-infrared bandpass filters to perform wavelength-selective splitting. This integration addresses a common pain point in optical engineering: the inability of standard infrared windows to isolate specific spectral lines for target analytes.
| Application Scenario | Target Wavelength / Band | Primary Function of ZnSe Splitter |
|---|---|---|
| Environmental Gas Monitoring | 4.3 µm (CO₂ Characteristic Peak) | Splits reference and measurement paths for high-sensitivity quantitative analysis. |
| Industrial Emissions Analysis | 3.3 µm (CH₄ / Hydrocarbons) | Isolates narrow-band infrared signatures to detect trace pollutants. |
| Aerospace & Remote Sensing | 3.0 – 5.0 µm (Thermal Radiation) | Directs thermal radiation signatures to multi-channel detectors for anomaly identification. |
A typical application is the quantitative analysis of greenhouse gases and pollutants. For instance, by isolating the 4.3 µm carbon dioxide (CO₂) or 3.3 µm methane (CH₄) absorption bands, environmental monitoring instruments achieve high-sensitivity detection in industrial emissions analysis. Furthermore, because the 3–5 µm mid-infrared band is highly sensitive to thermal radiation, these optics are widely deployed in airborne sensing and satellite payloads for forest fire detection, volcanic activity monitoring, and surface thermal anomaly mapping. Each splitter undergoes rigorous spectral calibration to guarantee repeatable data accuracy during continuous field operation.
3. Energy Allocation and Closed-Loop Control in Laser Processing
In high-power mid-infrared laser processing—such as CO₂ laser cutting, welding, and surface modification—stable energy distribution and real-time beam monitoring are vital to maintaining manufacturing yield. High-power ZnSe beamsplitters are engineered to handle high laser damage thresholds (LDT) while safely dividing the incident laser energy.
The majority of the laser energy passes through the splitter to act as the primary processing beam on the workpiece. Simultaneously, a minor, precise percentage of the beam is reflected into a diagnostic sensor path. This diagnostic path samples laser power stability, beam drift, and energy fluctuations in real time. The sensor data is fed back into the equipment's central control system, establishing a robust, closed-loop adjustment mechanism. This setup allows the system to dynamically tune processing parameters, eliminating defects caused by power spikes or optical misalignment, which significantly enhances operational safety and batch consistency.
Advanced IR Optical Solutions for Demanding Applications
Industrial environments demand optics that withstand thermal shock and mechanical fatigue. To meet these challenges, the fabrication process of CVD ZnSe lenses and beamsplitters requires optimized coating adhesion and precise substrate polishing to minimize surface roughness and absorption. As an established manufacturer of custom infrared optics and IR windows, iroptical delivers an extensive in-stock selection of standard components alongside high-level customization capabilities. We provide custom splitting ratios, tight dimensional tolerances, and specialized anti-reflection (AR) coatings tailored to your system architecture.
Whether you are designing a next-generation gas analyzer, optimizing a high-power laser system, or scaling remote sensing instruments, managing beam delivery and component degradation shouldn't compromise your timeline. For comprehensive technical consultations, volume quotes, or custom engineering inquiries, contact our application engineering team directly at sales@iroptical.com or submit your specifications through our online RFQ portal. Our robust production lines guarantee predictable lead times and world-class quality control from prototype to series production.
